Generic PCB electronics enclosure

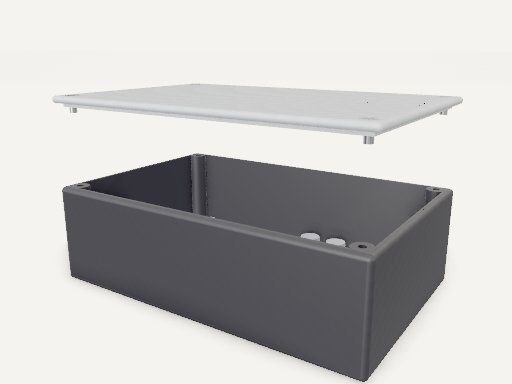

Hollow ABS box with PCB standoffs, a cable opening and a removable lid shown lifted to expose the interior.
- Width
- 14 cm
- Height
- 8 cm
- Depth
- 9 cm
Opens in the editor with all parameters wired up. Up to 160 trial credits.
About this model
A generic small electronics housing built around a 100×60mm circuit-board envelope. The charcoal ABS base has a hollow cavity and raised mounting posts, with a cable opening on one short side. A contrasting grey lid is displayed above the box so you can see the interior; the assembled box itself is approximately 45mm high, while the exploded preview is taller. Adjust width, depth, and nominal wall thickness to try another board footprint, then edit the geometry for your particular connectors and mounting pattern. Export STEP for downstream mechanical CAD or STL for a prototype print. Board artwork and proprietary product details are intentionally absent. Verify clearance, fastening, strength, and electrical requirements for the components you actually plan to install.
How this model was generated
Prompt2CAD generated this from a single natural-language description. Here it is verbatim.
Start from this design
Up to 160 trial credits, no credit card required. Tweak any dimension, swap materials, export to STEP, DXF, OBJ, STL, or GLB.
Customize this design →
